Viglen SX220 User Guide 92
Buttons
• >>: Moves all the events from the enabled listbox to the disabled listbox.
• >: Moves the selected event from the enabled listbox to the disabled listbox.
• <: Moves the selected event from the disabled listbox to enabled the listbox.
• <<: Moves all the events from the disabled listbox to the enabled listbox.
• Save: Allows you to save the configuration immediately.
• Close: Allows you to close the Platform Event Action dialog without saving
changes. If you have made changes, you will be prompted to save changes
before closing.
• Help: Displays help information.
Emergency Management Port Dialog
This dialog allows you to configure the Emergency Management Port features. (See
Figure 47)

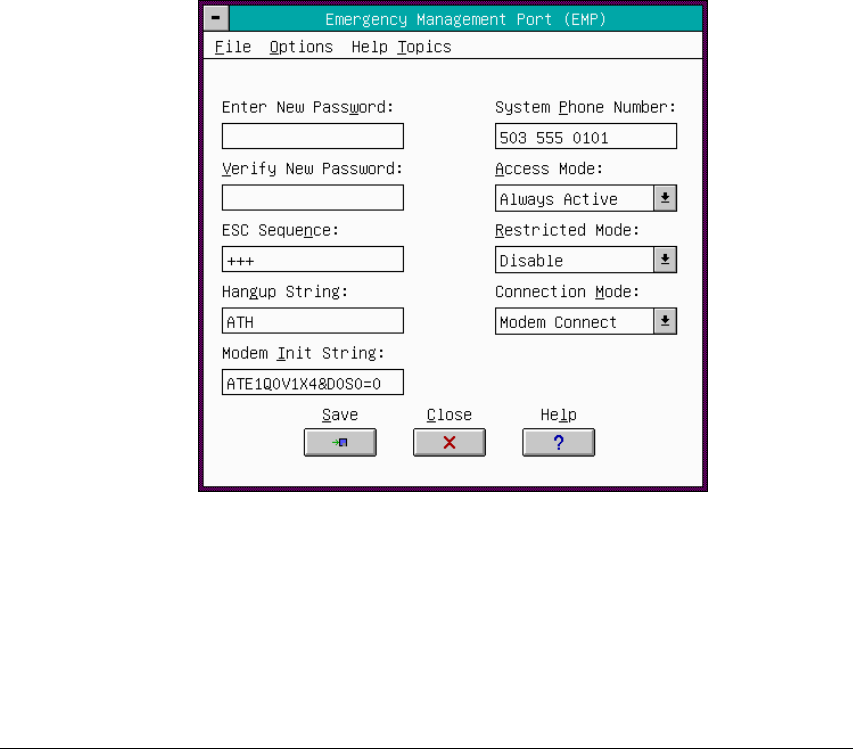

Figure 47: Emergency Management Port Dialog
File
The File menu has the following options:
