Viglen SX220 User Guide 38

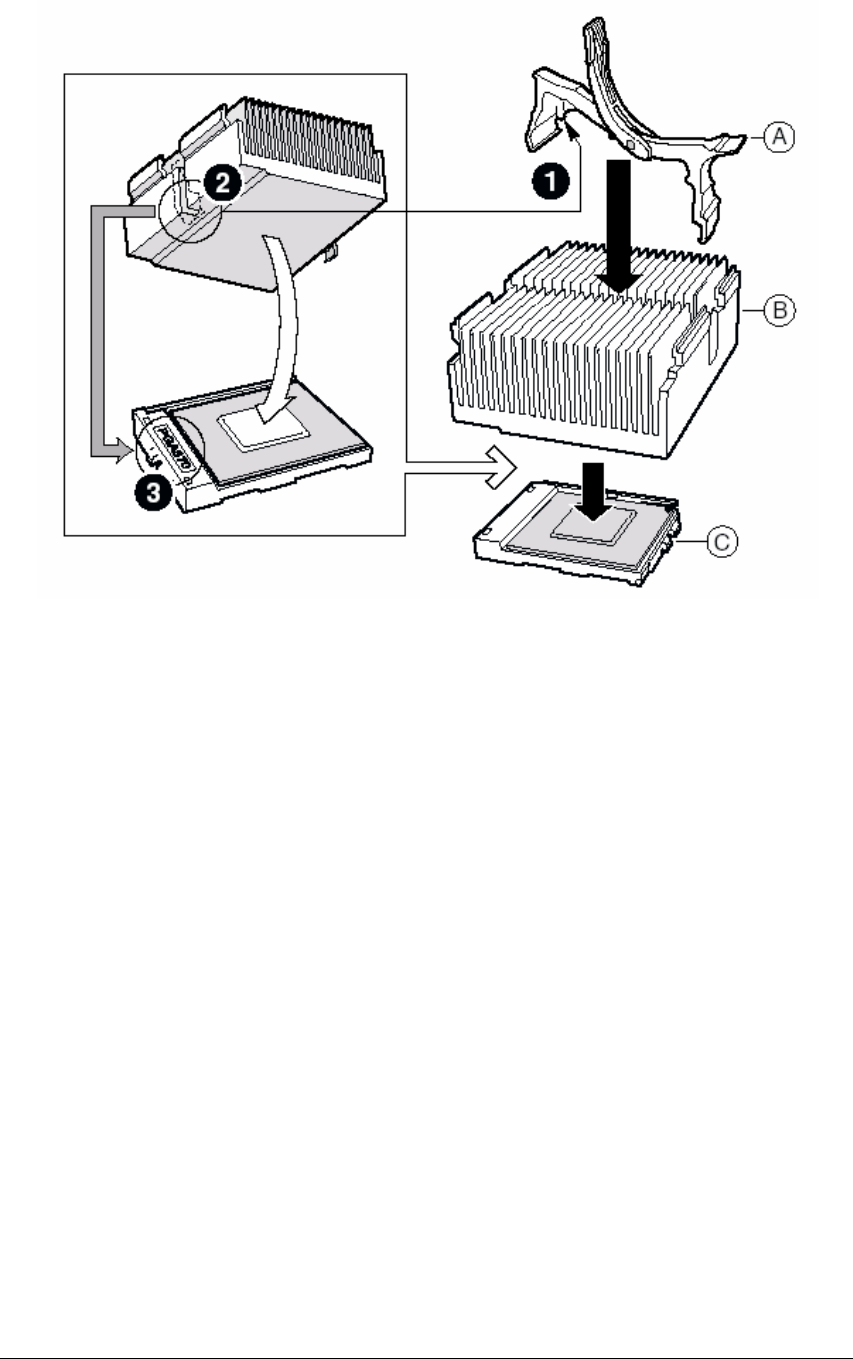

Figure 18: Installing the Heatsink
A. Heat sink retention clip
B. Heat sink
C. Socket and processor
CAUTION!
Use care when closing the locking lever—do it slowly.
11. Slowly close the locking lever (A) until it contacts tab (B), see Figure 19.
