Installing and Replacing Desktop Board Components

To replace the battery, follow these steps:

1. Observe the precautions in "Before You Begin" (see page 27).

2. Turn off all peripheral devices connected to t

he computer. Disconnect the

computer’s power cord from the AC power source (wall outlet or power adapter).

3. Remove the computer cover.

4. Locate the battery on the board (see Figure 32).

5. Wi

th a medium flat-bladed screwdriver, gently pry the battery free from its

connector. Note the orientation of the “+” and “-” on the battery.

6. Install the new battery in the connector, orienting the “+” and “-” correctly.

7. Replace the computer cover.

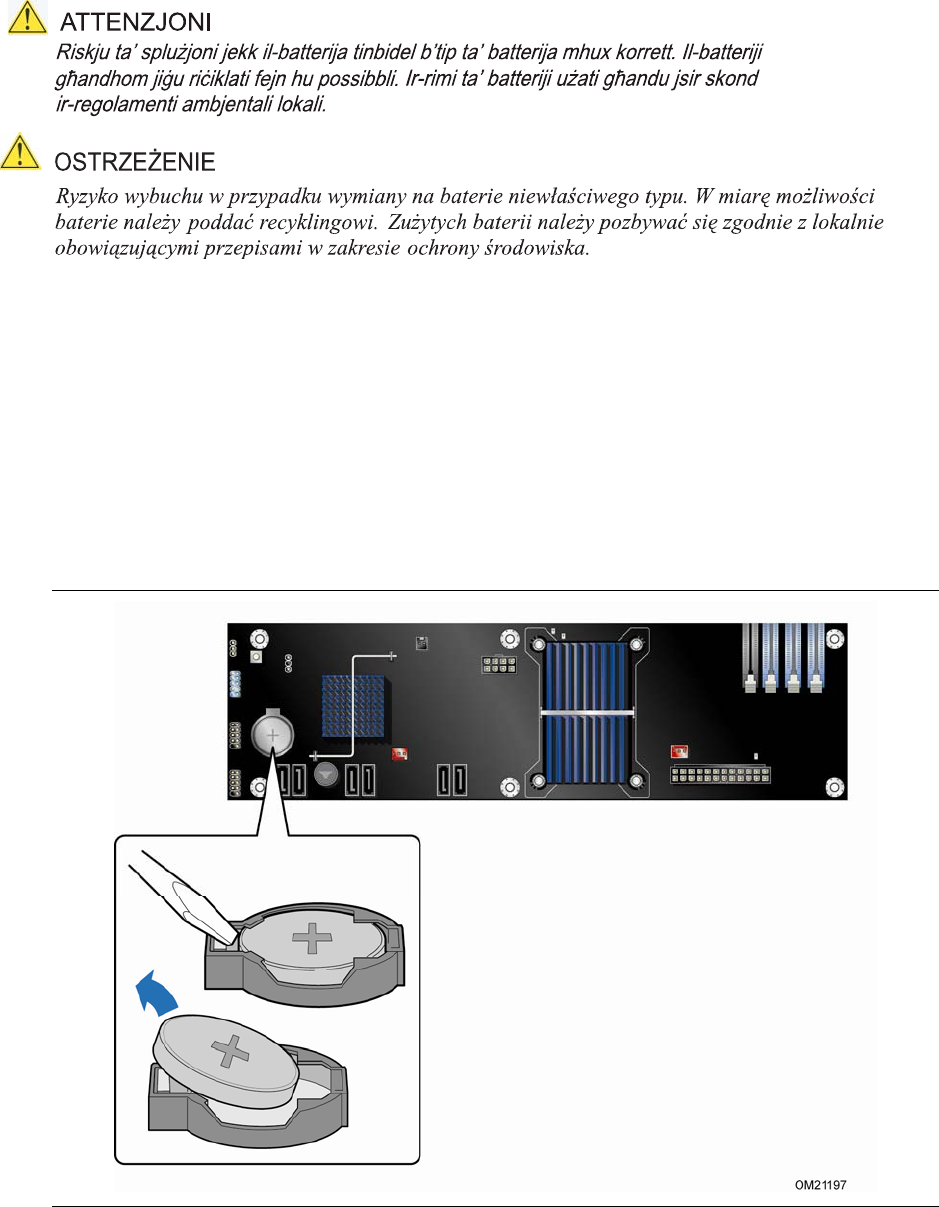

Figure 32. Removing the Battery
