Intel Desktop Board DX58SO Product Guide

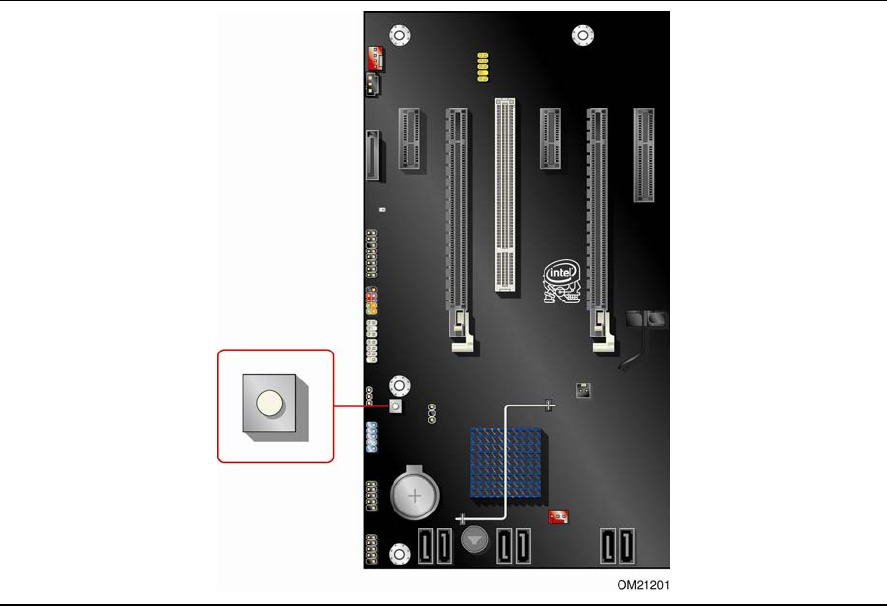

Figure 5. Onboard Power Button

Onboard VR and CPU LEDs

The Desktop Board contains the following two LEDs (see Figure 6) that indicate the

status of the board’s voltage regulation circuitry and the processor:

• The CPU LED (Figure 6, A) indicates an elevated temperature on

the processor that

could affect performance.

• The VR LED (Figure 6, B) indicates an elevated temperature in the processor

voltage regulator circuit that

could affect performance.
