Intel Desktop Board DX58SO Product Guide

Removing a PCI Express x16 Card

Follow these instructions to remove a PCI Express x16 card from a connector:

1. Observe the precautions in "Before You Begin" on page 27.

2. Remove the

screw (Figure 25, A) that secures the card’s metal bracket to the

chassis bac

k panel.

3. Push the card ejector lever down using the tip of a pencil or similar tool

(Figure 25, B) in the notch. This will release the card from the connector (C).

4. P

ull the card straight up.

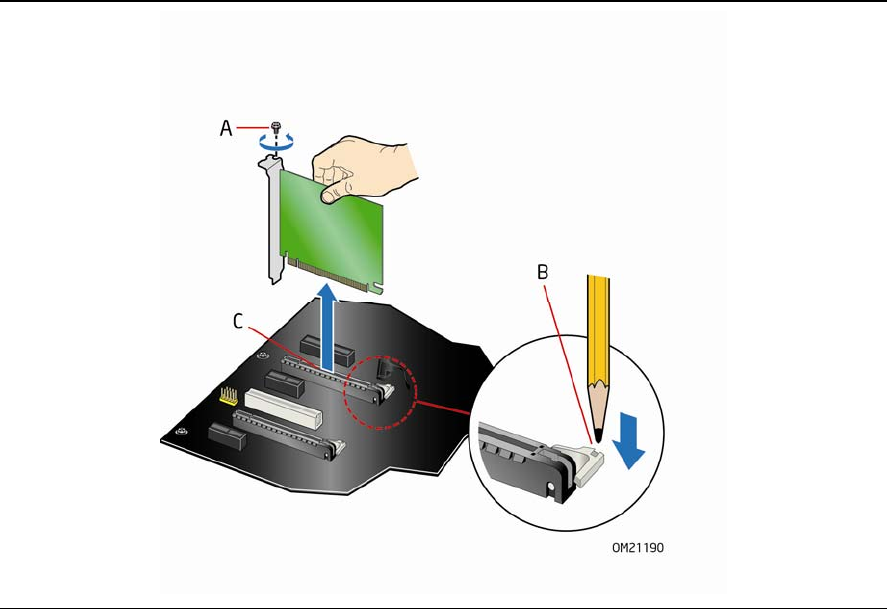

Figure 25. Removing a PCI Express x16 Card
