78 Intel

Server System SR1500AL User’s Guide

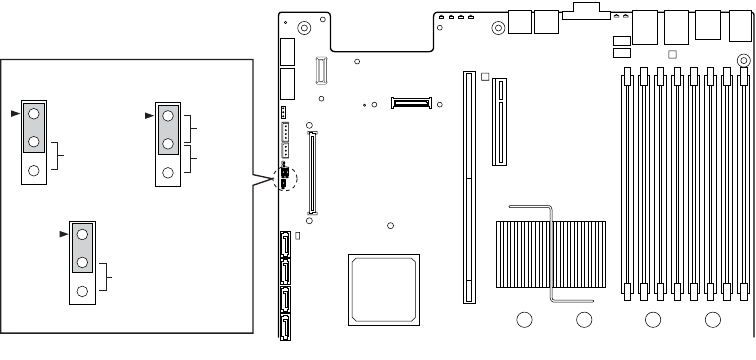

Figure 64. Clear CMOS Jumper

4. Wait five seconds.

5. Return the CMOS Clear jumper to the CMOS Clear by BMC location, covering

pins 1 and 2.

6. Close the server chassis.

7. Reconnect the AC power and power up the system.

8. The CMOS is now cleared and can be reset by going into the BIOS setup.

TP02080

Password

Reset

J1D2

J1D3

Clear

CMOS

BMC Force

Update Mode

J1D1

Disable

Enable
