Intel Desktop Board DX58SO2 Product Guide

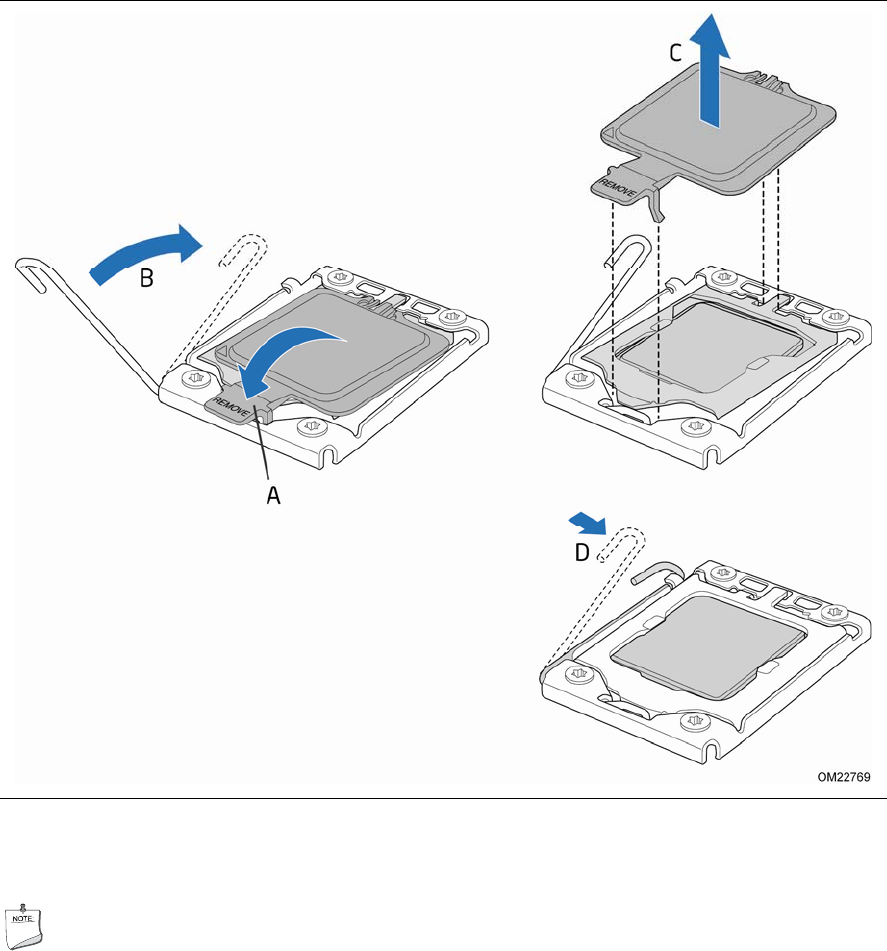

7. Close the load plate (Figure 13, A, B). As the load plate is closed, the socket cover

(Figure 13, C) will pop off as shown. After the load plate is closed, engage the

socket lever (Figure 13, D) under the latch.

Figure 13. Close the Load Plate

8. Pickup the socket cover (Figure 13, C) and remove it from the board.

NOTE

Do not discard the socket cover; save it for possible future use. Always replace

the socket cover if you remove the processor from the socket.
