Desktop Board Features

Wake from Consumer IR

Consumer IR device activity wakes the computer from an ACPI S3, S4, or S5 state.

Onboard System Control Switches

The board contains the following lighted button switches that can be used to control

board operation:

• Base Clock Frequency Increase

• Base Clock Frequency Decrease

• Power

• Reset

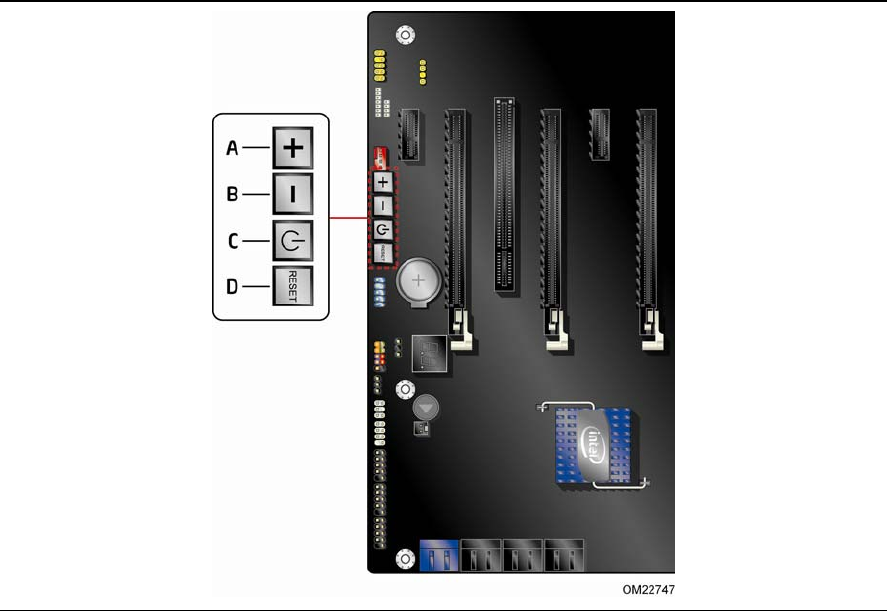

Figure 5. Onboard System Control Switches
