Intel Desktop Board DH77EB Technical Product Specification

2.2.2.6 Front Panel USB 2.0 Headers

Figure 12 is a connection diagram for the front panel USB 2.0 headers.

NOTE

• The +5 V DC power on the USB headers is fused.

• Use only a front panel USB connector that conforms to the USB 2.0 specification for

high-speed USB devices.

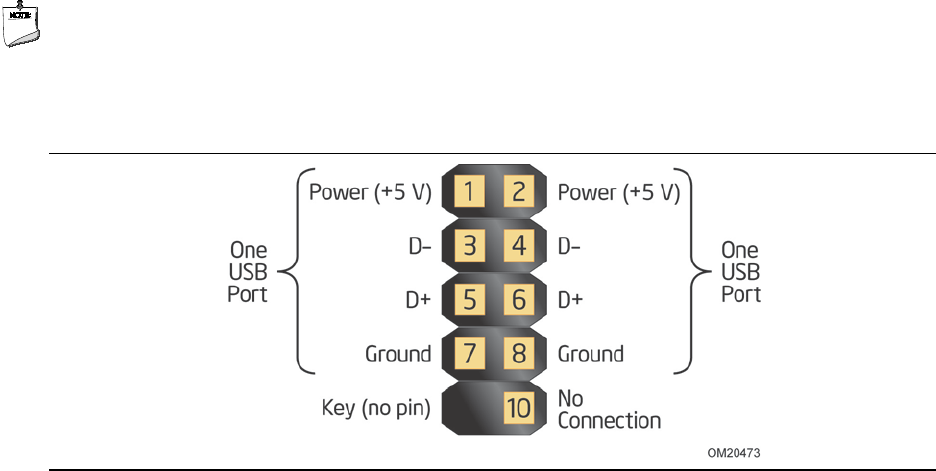

Figure 12. Connection Diagram for Front Panel USB 2.0 Headers
