Package Mechanical Specifications

3.9 Processor Land Coordinates

Figure 10 shows the top view of the processor land coordinates. The coordinates are

referred to throughout the document to identify processor lands.

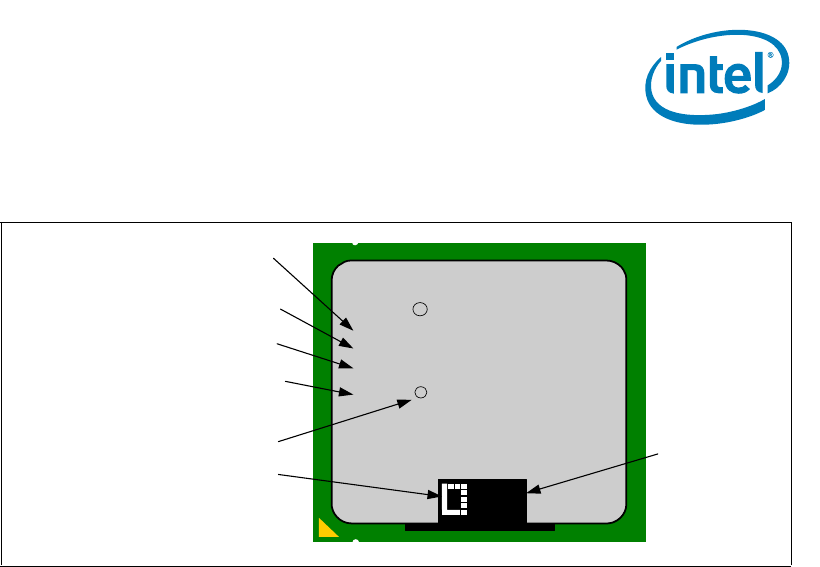

Figure 9. Processor Top-Side Markings Example (Intel

Pentium

Processor Extreme

Edition 955, 965)

ATPO

S/N

Processor Number/ S-Spec/

Country of Assy

INTEL

XXXXXXXX

3.73GHZ/4M/1066/05B

965 SLxxx [COO]

[FPO]

‘05

Frequency/L2 Cache/Bus/

775_VR_CONFIG_05x

FPO

2-D Matrix Mark

Unique Unit

Identifier

ATPO Serial #

Brand

Pb-free 2LI Symbol

1 2 ... 38 39 40 41 42 43 44 45 46 47 48 ... 111 112
