Technical Reference

CAUTION

Ensure that proper airflow is maintained in the processor voltage regulator circuit. Failure to do

so may result in damage to the voltage regulator circuit. The processor voltage regulator area

(item A in Figure 24) can reach a temperature of up to 85

C in an open chassis.

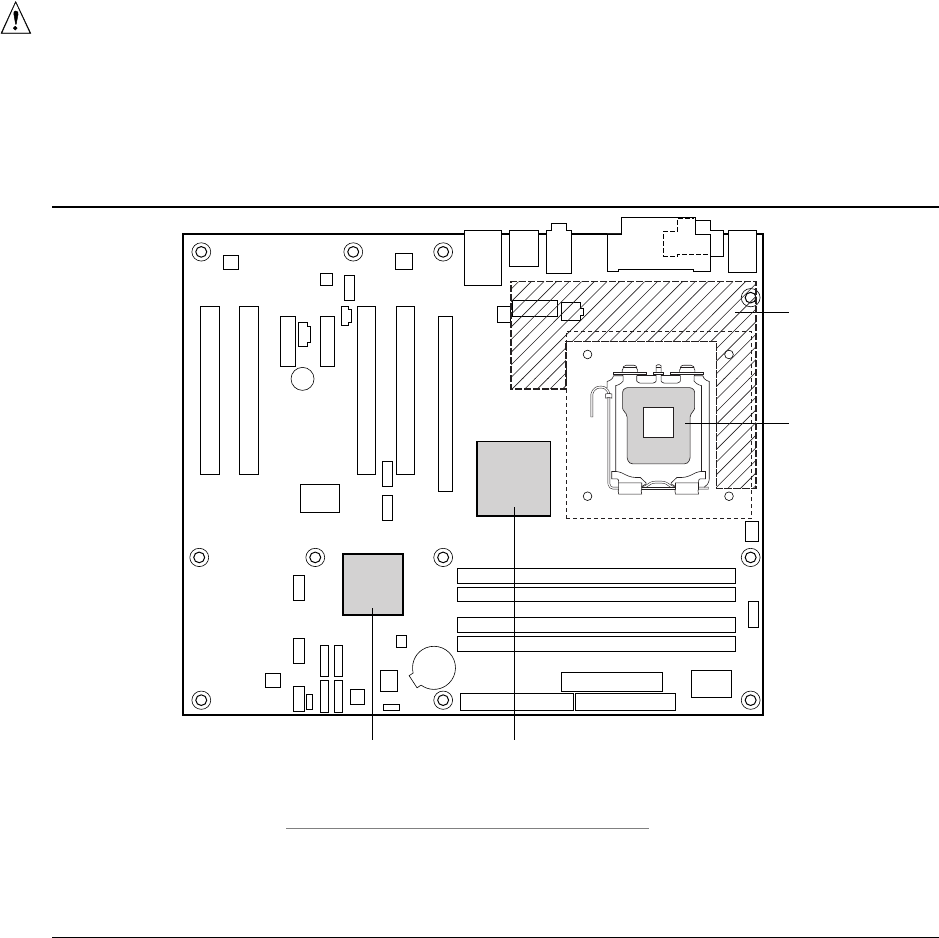

Figure 24 shows the locations of the localized high temperature zones.

OM17063

Item Description

A Processor voltage regulator area

B Processor

C Intel

82915P MCH

D Intel

82801FR ICH6-R

Figure 24. Localized High Temperature Zones
