Installing and Replacing Desktop Board Components

Installing the I/O Shield

This Desktop Board comes with I/O shields. When installed in the chassis, the shield

blocks radio frequency transmissions, protects internal components from dust and

foreign objects, and promotes correct airflow within the chassis.

Select the proper I/O shield for the chassis you have chosen to use. Install the I/O

shield before installing the Desktop Board in the chassis. Place the shield inside the

chassis as shown in Figure 3. Press the shield into place so that it fits tightly and

securel

y. If the shield does not fit, obtain a properly sized shield from the chassis

supplier.

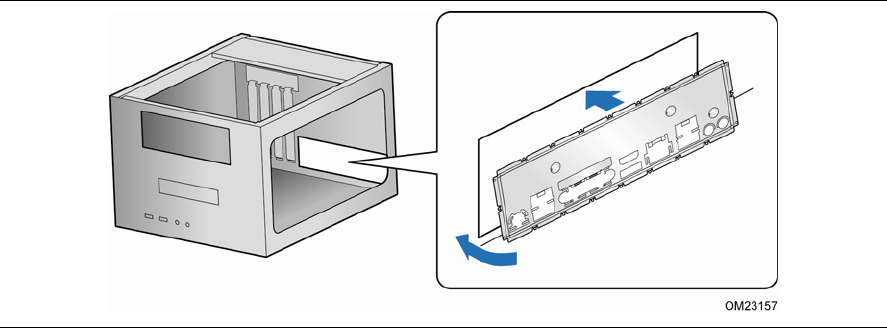

Figure 3. Installing an I/O Shield
