Intel Desktop Board D201GLY Product Guide

Setting the Desktop Board Jumpers

NOTE

Always turn off the power and unplug the power cord from the computer before

changing a jumper. Moving the jumper with the power on may result in unreliable

computer operation.

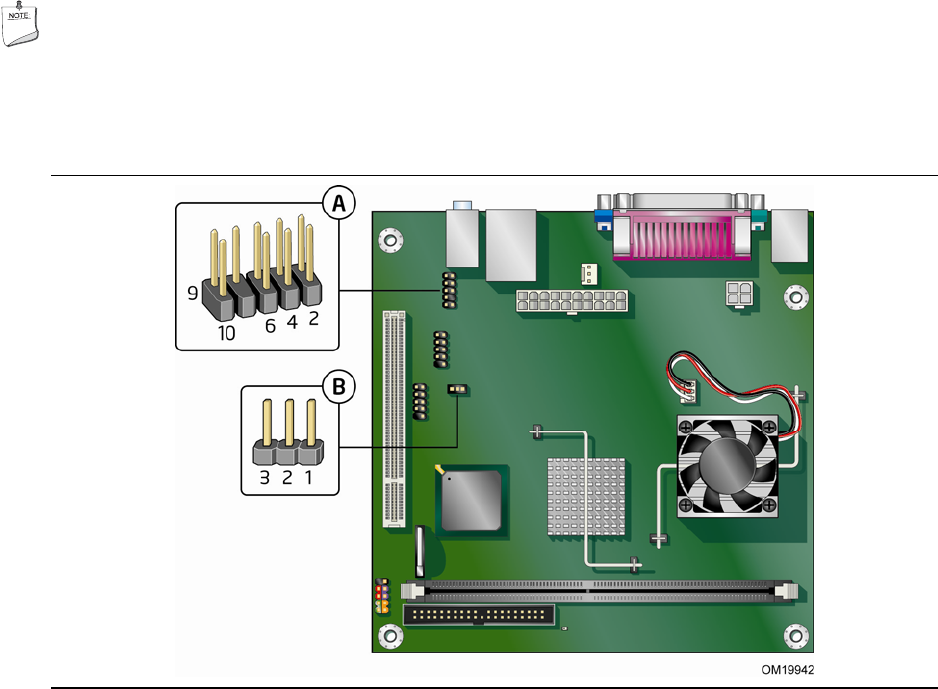

Figure 13. Desktop Board Jumpers

Front Panel Audio Header/Jumper Block

This header (Figure 13, A) has two functions:

• With jumpers installed, the audio line out and mic-in signals are routed to the back

panel audio connectors (see

Figure 2).

• With jumpers removed, the header provides audio line out and mic-in signals for

front panel audio connectors (see

Table 4).
